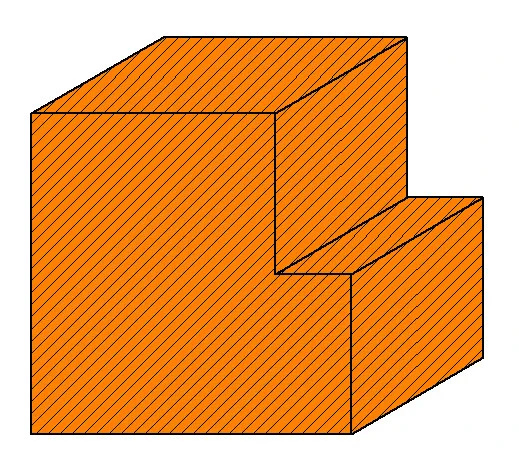

This timber window profile with a 10mm rebate, measuring 42mm x 42mm, is a square-section softwood moulding machined to accept 4mm glazing material. Designed for building fixed, bespoke windows in sheds, garden offices, summerhouses, and garages, it is supplied square-ended for on-site cutting to length.
Specifications
| Property | Detail |
|---|---|
| Material | Scandinavian Redwood (softwood) |
| Nominal Size | 42mm x 42mm |
| Profile | Square-edge section with 10mm rebate |
| Rebate | 10mm, sized to accept 4mm glazing material |
| Finish | Machined, unfinished |
| Lengths Available | 300mm, 600mm, 900mm, 1200mm |
| Supplied | Square-ended, unglazed |
What it's used for
- Building fixed-light windows in timber garden offices, workshops, and home studios
- Glazing panels in shed doors and outbuilding walls using acrylic, polycarbonate, or single-glazed glass
- Constructing bespoke summerhouse or cabin windows where standard off-the-shelf frames are not the right size
- Replacement or repair sections for existing fixed-frame windows in garages and outbuildings
Fitting and handling

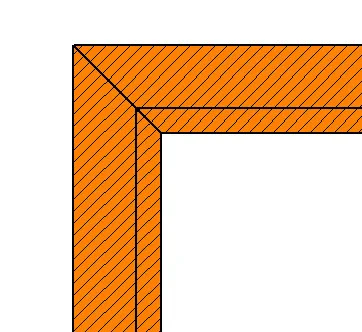

Store this section flat and off the ground in a dry, covered space before use, and allow it to acclimatise to the ambient conditions of the installation site for at least 48 hours. When assembling a frame, cut the profile square or at 45 degrees at the corners and fix with exterior-grade PVA glue and galvanised lost-head nails or screws suitable for softwood. Finish with at least two coats of exterior-grade paint or primer before or immediately after installation to protect the timber from moisture ingress and movement.
FAQ
What glazing material fits the 10mm rebate on this window profile?
The rebate is sized to accept 4mm glazing material, including 4mm float glass, 4mm acrylic sheet, Perspex, and twin-wall or solid polycarbonate sheet. The remaining clearance allows for a standard softwood glass bead to be pinned in to secure the pane.
Can I use this profile for an opening window or casement?
This profile is intended for fixed-light, non-opening windows. It does not include a draught seal groove or hinge rebate, so it is not suited to casement or sash applications. For a fixed glazed panel in a shed, garage, or outbuilding it is a practical, straightforward choice.
Does this window profile come pre-treated or pre-primed?
No. The profile is supplied unfinished and unprimed. For any external application you should apply a suitable exterior primer or base coat on all faces, including the rebate, before fitting and follow up with a topcoat once the frame is in place.
Browse the full range of pine mouldings and joinery sections at Nottage Timber Merchants, including glass beads and architrave profiles to complement this window system. Local customers in Bridgend and across South Wales can collect directly from our yard, and UK delivery is available on all orders placed online.
